Product Details:
|
| Brand Name :: | DY Invisible Grille | Model Number :: | Wire-316#(7*7)3.0mm |
|---|---|---|---|
| Place Of Origin: | Guangzhou | Special Use: | Free Cutting Steel |
| Structure: | 7*7 | Packaging: | Plastic Roll And Bagging |
| Alloy Or Not: | Non-alloy | Surface: | Nylon Steel Wire Rope |
| Stainless Steel Wire: | #316(3*7)2.0mm | Design: | Modern |
| Durability: | High | Function: | Security |
| Material: | Aluminium Alloy | Safety: | High |
| Size: | Customized | Surface Treatment: | Powder Coating/Anodizing |
| Wind Resistance: | High | Application: | Residential/Commercial |
| Color: | White/Black/Grey/Golden | Wire Distance Gap: | 5cm/6cm/10cm/12cm |
| Installation: | Surface Mount/In-Wall Mount | Max Height: | 2.4m |
| Max Width: | 1.2m | Thickness: | 2.0mm/2.5mm |
| High Light: | Window Invisible Grille Anodizing,Modern Safe Window Invisible Grille |
||

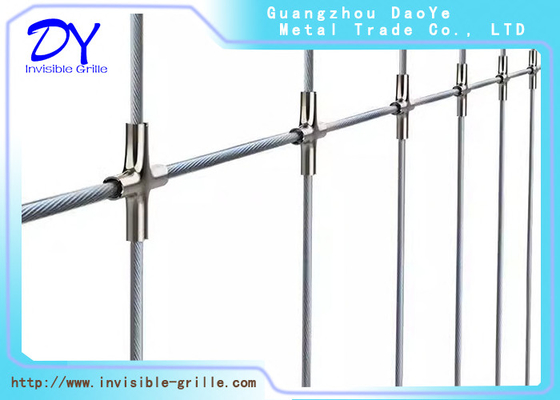

Modern & Safe Invisible Grille - 2.0mm 316 Stainless Steel Cable & 3.0mm Aluminium Rail Track
Our Invisible Grille enhances your family’s lifestyle, allowing you to maximise airflow and natural light while providing unobstructed views. Experience a smooth and comfortable living experience in your home while keeping them safe.
Invisible Grille comes in many forms. The most popular Invisible Grille families go for is the Fixed Invisible Grille, which is flexible in its installation. Also, choose to install it both horizontally or vertically.
Openable or Casement Invisible Grilles can be unlocked and opened, giving you easy access to cleaning or servicing aircon compressors for added convenience.
Be it for balconies, fixed or sliding Invisible Grilles, consult with our friendly advisors at Elelaurels as we provide fuss-free, honest, and no-obligation advice for the right type of Invisible Grille for your home.
Specification :
The rope:
| Model type: | DY-316#(3X7) 2.0mm |
| Application: | Crane , Safty Rope , Invisible Grille |
| Diameter: | 2.0mm |
| Tolerance: | ±1% |
| MOQ: | 3 Rolls |
| Weight: | 16-18KGS/Roll |
The Aluminium Rail Track
| Model type: | DY-AG3 |
| Thickness: | 1.4mm |
| Size: | 6m/set |
| Export Size: | cut into 2m/set or 3m/set |
| MOQ: | 30sets |
| Weight: | 2.4KGS/set |
Product Description:
Instead of having multiple cables connected to the Safety Grilles frame, our installation method is slightly different to improve fire escape safety measure. Safety Grilles required a special equipment to cut the cables.
Thus, we used only a single cable connecting to the structure from start to end. This enable a faster cable removal process in case of emergency. Instead of having to cut multiple cables, you only have to cut once to loosen everything.
We provide safety solution for our customers and their families.
DY invisible grille Safety Grille also known as DY invisible grille established since the early year of 2000. We believe Home is the safe haven for each and everyone of us. Where there is Home, there will be our love ones, our Family lives.
Our Safety Grilles are engineered using 316 stainless steel cable which is anti rust and has extra durability. It is known for it's superior strength and ability to withstand high pressure.
Compared to other Safety Grilles, our Safety Grilles can withstand pressure of up to 160-170KG. This is because our Safety Grilles are thicker than standard cables. We are using 2.5mm diameter cables which is 0.9mm thicker compared to the standard 1.6mm cables.
Invisible Grilles are getting more popular due to the level of safety it provides; while not hindering the view of the outdoors like traditional window grilles.
The wire looked thin. Are you sure it can replace traditional grille?
Depending on material, the high tension steel wire used for invisible grille can withstand tensile force of 100-140kg, meaning it is equally
strong enough to substitute aluminum or iron bars in their accident prevention role.
Can the wire be cut easily? What will happen during a fire emergency?
The wire can be cut by special wire cutter. In case of a fire, fireman will have the tools to easily cut open the wire.
Picture Showing:
